Heavy Duty Standard Roller Chain High Accuracy Industrial Roller Chain

Brand Name : FRESH CHAIN

Place of Origin : ZHENJIANG

MOQ : 1000 METERS

Packaging Details : WOODEN PACKAGE

Contact Now

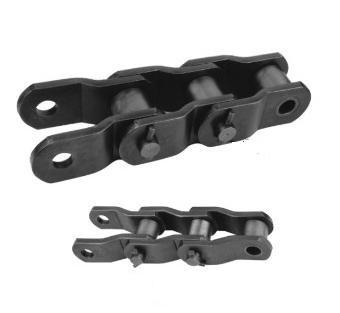

Heavy Duty Standard Roller Chain High Accuracy Industrial Roller Chain

Heavy-duty cranked-link chain is famous for its high accuracy, resistance to wear and fatigue durability. Its specific cranked-link joint structure is more suitable for the work environment with larger impact load and frequently changed intermittence. It mainly is used for large equipment and power transmission under heavy working conditions in mining, metallurgy, and engineering machinery industries.

Heavy duty cranked-link chain offered by us are manufactured from high quality special heat treated steel alloys. Durable in quality, these heavy duty cranked link chains have long service life. These chains are offered with the facility of length tolerances and lateral clearances that helps it to operate over flame cut or cast tooth sprockets. The main specification includes 2010,2512,2814,3315,3618,4020,4824 etc.

Heavy Duty Standard Roller Chain High Accuracy Industrial Roller ChainHeavy Duty Standard Roller Chain High Accuracy Industrial Roller ChainHeavy Duty Standard Roller Chain High Accuracy Industrial Roller ChainHeavy Duty Standard Roller Chain High Accuracy Industrial Roller Chain

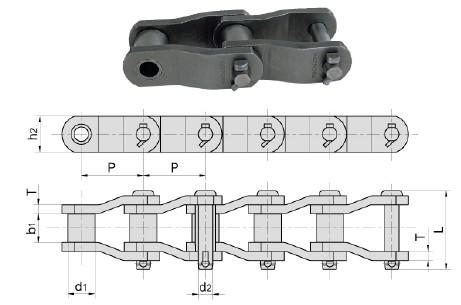

Chain no.PitchRoller
Diameter
Width
Between
Inner plate
Pin
Diameter
PinLengthPlate
depth
Plate
thickness
Ultimate
Tensile
Strength
Average
Tensile
Strength
WeightPer
Meter
pD1MaxB1minD2MaxLMaxH2TQMinQ0q
mmmmmmmmmmmmmmKN/LBKNKm/m
201063.5031.7538.115.9090.7047.807.90250.0/56818270.0013.53
251277.9041.2839.619.08103.4060.509.70340.0/77272367.2018.40
281488.9044.4538.122.25117.6060.5012.70471.0/105955507.6025.70
3315103.4545.2449.323.85134.9063.5014.20550.0/125000594.0027.71
3618114.3057.1552.327.97141.2079.2014.20760.0/172727820.8041.20
4020127.0063.5069.931.78168.1091.9015.70987.0/2243001069.2048.60
4824152.4076.2076.238.13187.50104.6019.001600.0/3636321700.0069.80
